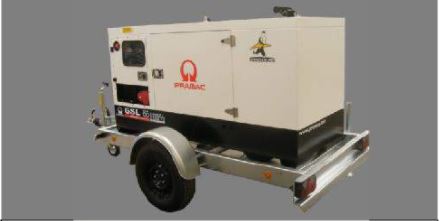

PRAMAC GSL42D RENTAL

PRAMAC Generators
PRODUCT SPECIFICATION
PRAMAC GSL42D RENTAL
GENERATOR
STANDBY POWER LTP KW/KVA33.2/41.5
PRIME POWER PRP KW/KVA31.6/39.5
VOLTAGE VOLT/FREQUENCY400/50
PHASES3
ENGINE
MANUFACTURERDeutz
MODELBF4M2011
COOLING SYSTEMOil
FUELDiesel
NUMBER AND DISPOSITION OF CYLINDERS4 in line
DISPLACEMENT CC3110
ASPIRATIONTurbo
STARTING SYSTEM/ELECTRIC CIRCUIT (VOLT)Electronic/12
SPEED rmp1500
SPEED GOVERNERMechanical
STAND BY POWER LTP kW38.2
PRIME POWER PRP Kw36.4
FUEL CONSUMPTION at 75%/100%prp L/h7.8/10/4
ALTERNATOR
TYPEMeccalte
POLES4
VOLTAGE REGULATION SYSTEMElectronic
OVERALL DIMENSIONS AND WEIGHT
LENGTH (mm)2000
WIDTH (mm)920
HEIGHT (mm)1310
WEIGHT (kg)968
FUEL TANK CAPACITY(L)68
RUNNING TIME @ 75%/100% PRP h8.7/6.5
NOISE PRESSURE LEVEL at 7mt dB(A)63
GUARANTEED SOUND POWER LEVEL LWA dB(A)89
Rental Kit includes
Socket Panel
  • -1 x 415v 63amp;
  • -1 x 415v 32amp
  • -2 x 230v 16amp
  • -hard wire facility


Fully Bunded Base

Three Way Fuel Valves(to allow connection to external fuel supply)

Battery Isolator Switch

Single Key System
