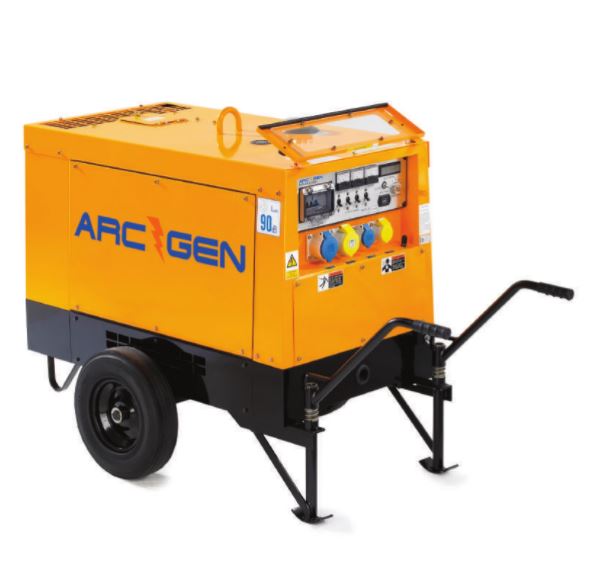

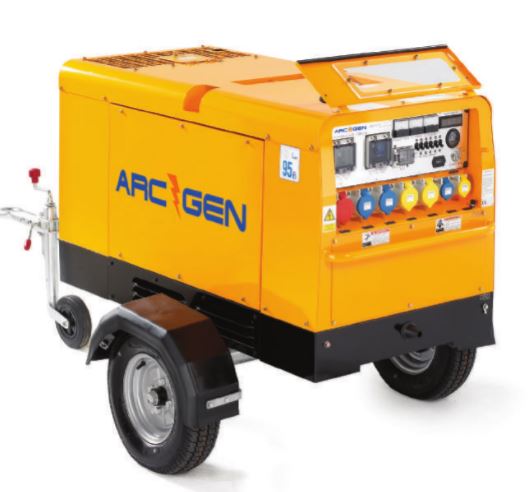

ArcGen Powermaker 6DV and 15MVK

Powermaker 6DV and 15MVK

A choice of 6kVA dual voltage and 15kVA multi voltage diesel Generators from ArcGen, combining the latest technology and customer insight, these machines are renowned for unrivalled build quality, flexibility and safe operation.

Suitable for use across a range of industries, the Powermaker 6DV supplies both voltages up to maximum output at the same time giving the user the ability to have 230V and 115V output simultaneously for other site tools to be used.

Powered by an efficient Kubota engine, the Powermaker 15MVK has a 42 litre fuel tank capacity. Built with the latest technology, the water cooled engine ensures reliability and longevity for maximum return on investment. The adjustable three phase auxiliary output allows the operator to use other site machinery and power equipment up to 440V.

Both generators easily meet the latest noise level legislation as outlined by directive 2000/14/EC for noise emissions in highly populated areas or where noise has to be kept to a minimum.

The brushless generator helps to regulate voltage and current thereby preventing surges and extending the life of the machine.


Safety features
  • Auto engine shutdown will operate in the event of low oil pressure, high water temperature, thermal overload, insufficient speed or with door opening for enhanced safety
  • Earth leakage circuit breaker fitted for increased site safety

Optional Extras
  • Road towable trailer or wheelbarrow trolley
  • Chalwyn valve
  • Spark arrestor
  • Forklift pockets


Features
  • Super silent operation reduces noise pollution
  • Water cooled Kubota engine or enhanced reliability & longevity
  • Multi-voltage output available simultaneously
  • Compact & lightweight available trolley mounted or on fast tow road trailer
  • Standby duty rating of 6.1kW continuous duty rate of 5.5kW at a power factor of 1.0
  • AVR controlled providing three phase voltage regulation of +/-1.5%
  • Brushless generator reduces maintenance costs
  • Hard wire facility for use with distribution boards










Powermaker 6DV and 15MVK


ArcGen Powermaker
Optional specifications
Petrochemical specification
  • Spark arrestor
  • Chalwyn valve




Offshores specification
  • Spark arrestor
  • Chalwyn valve
  • Drip tray
  • Fuel water tra
  • Emergency stop butto
  • Anti-static fan bel
  • Braided fuel line
  • Battery isolator switch
  • Fuel isolator shut off valve
MODELPOWERMAKER 6DVPOWERMAKER 15MVK
AUXILIARY OUTPUT - SINGLE PHASE (VAC)115/230 5.5kW 50Hz 110/240 12kVA/3x5kVA 50Hz
AUXILIARY OUTPUT - THREE PHASE (VAC)- 415 15kVA 50Hz
AVERAGE SOUND PRESSURE LEVEL @ 7MTRS62dB(A)65dB(A)
ENGINE TYPEKubota Z482 2 cylinder water cooledKubota D1005 3 cylinder water cooled
FUEL TANK CAPACITY (LITRES)2542
FUEL CONSUMPTION LITRES PER HOUR @75% LOAD2 Litres per hour3.8 Litres per hour
RUNNING TIME12.5 hours 11 hours
DIMENSIONS SKID MOUNTED LxWxH (mm)1170 x 670 x 8051520 x 730 x 790
WET WEIGHT265kg490kg
