- Four-pole circuit breaker
- Central lifting ring
- Primary filter
- Oil drainage pump
- Battery isolating switch
- Containment fuel tank and large autonomy
- Inlet air preheating
- Differential protection and earthing rod
- Rental compact canopy
- Leroy-Somer AREP(TS26-S004) Alternator
- Forks and frame protection pads
- Heavy duty air filter with interchangeable cartridge
POWER DEFINITION
PRP: Prime Power is available for an unlimited number of annual operating hours in variable load applications in accordance with ISO 8528-1.
ESP:The standby power rating is applicable for supplying emergency power in variable load application in accordance with ISO 8528-1.
Overload is not allowed
TERMS OF USE
According to the standards the nominal power assigned by the genset is given for 25℃ Air Inlet Temperature of a barometric pressure of 100 kPA (100m A.S.L) and 30% relative humidity. For particular conditions in your installation refer to a derating table.
For the generating sets used indoor, where the acoustic pressure levels depend on the installation conditions , it is not possible to specify the ambient noise level in the exploitation and maintenance instructions. You will also find in our exploitation and maintenance instructions a warning concerning the air noise dangers and the need to implement appropriated preventive measures.

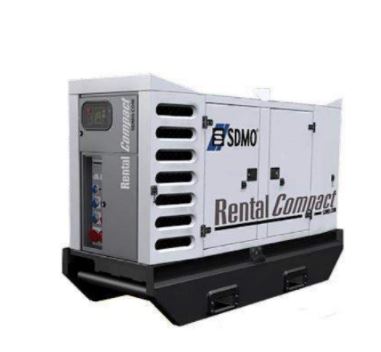

SDMO R66C2C(CE)
| Engine type | 4045TFS70 |
| Alternator type | LSA 43.2 M45 |
| Canopy type | M3128 |
GENERAL CHARACTERISTICS
| Frequency(Hz) | 50 |
| Voltage value | 400 |
| Max power ESP (kVA) | 66 |
| Max power ESP (kWe) | 52.8 |
| Max power PRP (kVA) | 60 |
| Max power PRP (kWe) | 48 |
| Intensity (A) | 95 |
| Standard control panel | NEXYS |
BIG AUTONOMY DIMENSIONS
| Length (mm) | 2545 |
| Width (mm) | 1150 |
| Height (mm) | 1824 |
| Dry weight (kg) | 1650 |
| Tank capacity(L) | 390 |
| Autonomy at 75% of load (h) | N/A |
| Autonomy at 50% of load (h) | N/A |
SMALL AUTONOMY DIMENSIONS
| Length (mm) | N/A |
| Width (mm) | N/A |
| Height (mm) | N/A |
| Dry weight (kg) | N/A |
| Tank capacity (L) | N/A |
| Autonomy at 75% of load (h) | N/A |
| Autonomy at 50% of load (h) | N/A |
NOISE LEVEL
| Acoustic pressure level @1m in dB(A)() | 72 (0.7) |
| Acoustic pressure level @7m in dB(A)() | 61 (0.7) |
| Sound power level guaranteed (Lwa) | 91 |
